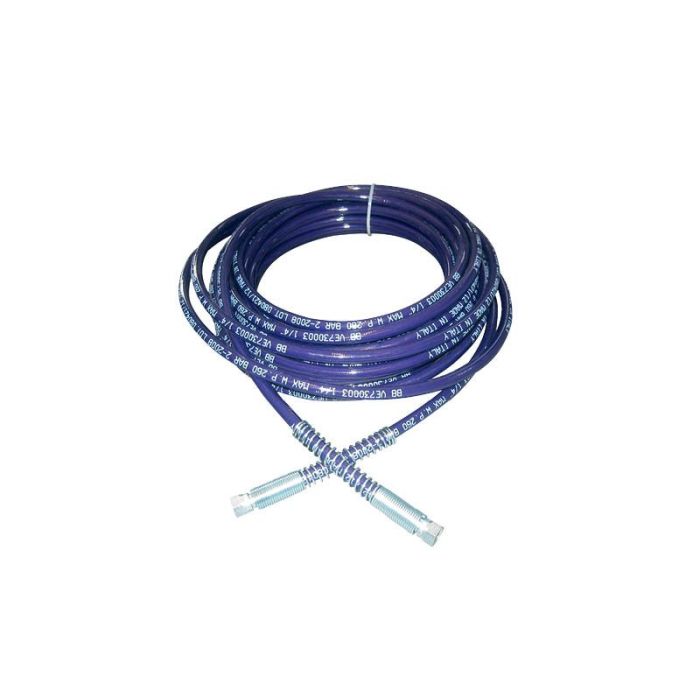

Anti-Pulse Nylon high pressure hose 270Bar 1/4'' 1/4 NPS Thread 15Mtr

Our range of high-pressure fluid hoses are made from polyester textile reinforcement with anti-abrasion exterior covering.

Micro-perforated polyurethane for the conduction of air and other gases.

These hoses are not able to dissipate electrostatic charges.

Spring guards minimise the risk of kinking and bursts.

• Burst Pressure Min. BAR: 1080
• Working Pressure Min. BAR: 270
• Bend Radius min/mm. 50 min/mm
• Weight: (grams/mtr) 87
• Meet or exceed SAE J517 sec. 100R7 and ISO 3949 Standards.
• Bore: ¼”
• Hose Length: 15mtr

Inner core manufactured from polyester textile reinforcement and fitted with a anti-abrasion exterior covering.

This hose is not able to dissipate electrostatic charges that may build up in case non-conductive fluids are present.

Fitted with spring guards to minimise the risk of kinking and bursting.

Suitable for all airless spray guns and pumps Can be used with solvent and water based paints.

Max temperature From -40 C to +100C

Max working temperature of air, water and water based fluids is +95C

Manufactured to ISO3949 Standards

Fitted with 1/4" female threads at each end
